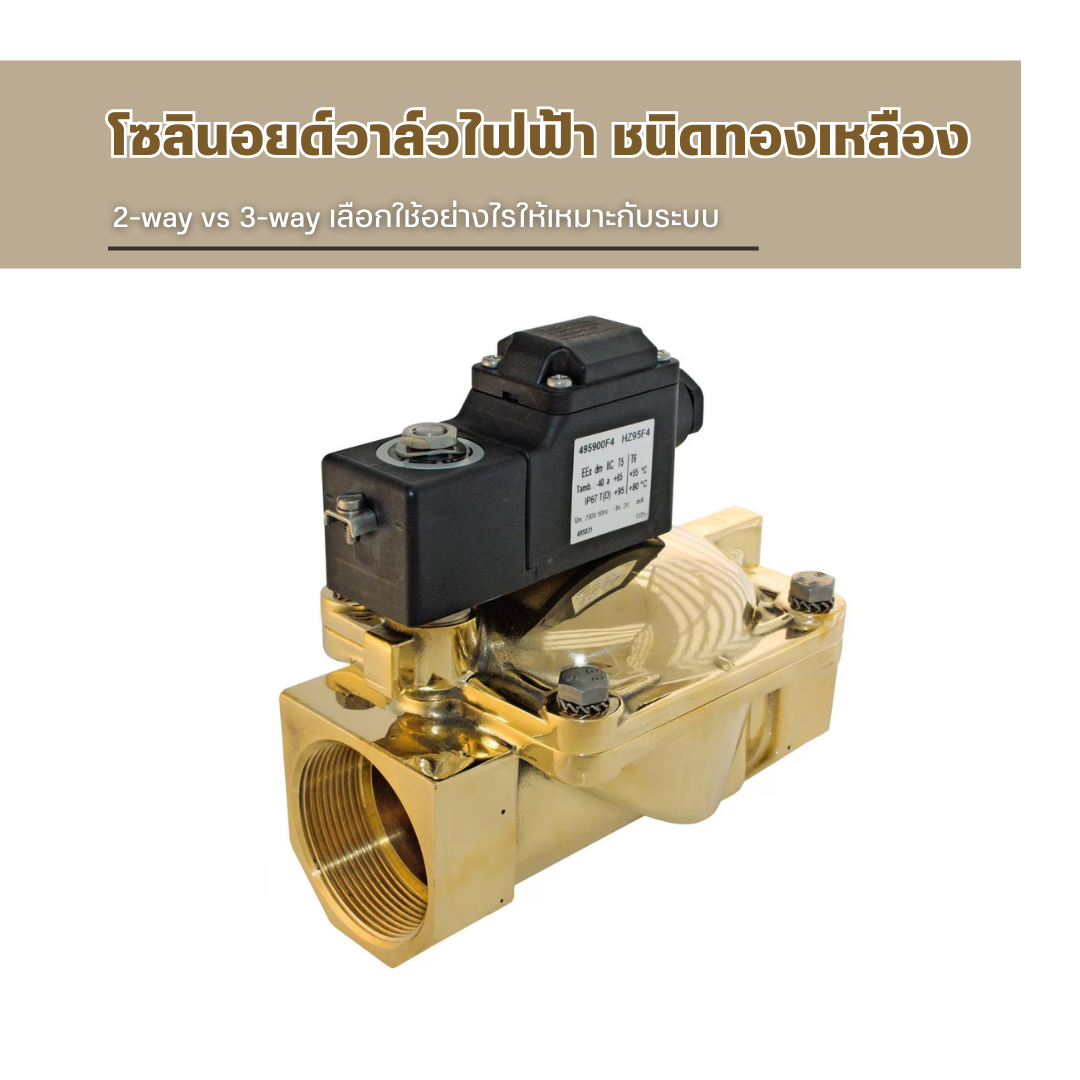

Electric Brass Solenoid Valves : 2-Way vs. 3-Way – Choosing the Right Type for Your System

In industrial and automation systems, electric solenoid valves play a crucial role in precisely controlling fluid flow. Selecting the right solenoid valve not only improves system efficiency but also reduces operating costs and extends equipment lifespan. This article presents a case study of businesses utilizing 2-way and 3-way electric brass solenoid valves and provides guidance on selecting the appropriate type for different systems.

Case Study: Steam Flow Control in a Food Processing Plant
A frozen food manufacturing plant sought to improve its steam control system used in production. Previously, the facility relied on manual mechanical valves, which caused delays in temperature regulation during steam-based cooking processes and led to steam leakage at certain points.

To address these issues, the company’s engineering team decided to install electric brass solenoid valves, selecting 2-way and 3-way valves at different points to optimize steam control within the system.

Choosing Between 2-Way and 3-Way Solenoid Valves

1.) 2-Way Electric Solenoid Valves
The 2-way solenoid valve was implemented in areas requiring straightforward open/close control of steam flow, such as directing steam into food steamers. The team chose brass 2-way solenoid valves due to their durability at high temperatures and their ability to provide a tight seal, minimizing energy loss during production.

Results:

• 30% reduction in steam loss due to minimized leakage
• Improved temperature accuracy in the food steaming process
• 20% reduction in setup and process adjustment time

2.) 3-Way Electric Solenoid Valves
For points requiring steam flow redirection, the engineering team installed 3-way solenoid valves. These valves allowed quick switching of steam supply between different equipment, particularly during production line changes. The team found that 3-way solenoid valves significantly enhanced steam management efficiency.

Results:
• 40% reduction in production line changeover time
• 25% decrease in steam energy consumption
• Simplified pipeline routing and lower maintenance costs

Conclusion and Recommendations
The case study demonstrates that properly selecting 2-way and 3-way electric brass solenoid valves can significantly improve steam control efficiency, reduce energy consumption, and lower operational costs.

Guidelines for Choosing Solenoid Valves:
1.) Choose a 2-way solenoid valve for direct open/close fluid control with a tight shut-off requirement.
2.) Choose a 3-way solenoid valve if flow direction needs to be switched between two outlets or controlled between two sources.
3.) Consider the temperature and pressure of the fluid to select the appropriate valve material.
4.) Evaluate cost-effectiveness in the long term, including valve lifespan and maintenance costs.

Proper selection and implementation of solenoid valves can optimize industrial and automation systems, ensuring higher efficiency, reduced energy waste, and lower maintenance expenses.
