What is Water Hammer? The Hidden Danger in Industrial Piping Systems

Water Hammer arrestors, also known as hydraulic shock, is a phenomenon that occurs in piping systems when there is a sudden change in fluid pressure. This issue can cause severe damage to pipes, valves, and other related equipment if not properly controlled.

In this article, we will explain what Water Hammer is, its causes, potential problems, and how to prevent damage in industrial piping systems.

What is Water Hammer?
Water Hammer is the sudden surge of pressure that occurs when fluid flow is abruptly stopped or changed in direction. This results in a pressure wave that travels through the pipeline, exerting force against the pipe walls and connected equipment.

This pressure surge can lead to significant issues, including leaks, valve failure, pipe bursts, and, in extreme cases, catastrophic system failure.

Causes of Water Hammer
Water Hammer can be caused by several factors, including:

1.) Rapid Valve Closure or Opening
If a valve is closed or opened too quickly, the flow of liquid is suddenly accelerated or stopped, leading to pressure surges in the system.

2.) Sudden Pump Shutdown
When a pump stops operating unexpectedly, the flow of water halts abruptly, creating pressure buildup and resulting in Water Hammer.

3.) Sudden Change in Flow Direction
Changes in flow direction, such as pipe bends, diameter changes, or sudden restrictions, can generate impact forces within the system.

4.) Air Trapped in the Pipeline
Air pockets in the pipeline can cause pressure fluctuations, leading to vibrations and hydraulic shock.

Effects of Water Hammer arrestors in Industrial Piping Systems
Water Hammer can lead to various problems in a piping system, including:

1.) Damage to Pipes and Equipment
The intense pressure shock can cause pipe ruptures, valve leaks, or even complete failure of fittings and components.

2.) Reduced Equipment Lifespan
Repeated pressure surges accelerate wear and tear on equipment, leading to frequent maintenance and replacements.

3.) Decreased Flow System Efficiency
Fluctuating pressure from Water Hammer can disrupt fluid flow, affecting industrial production processes.

4.) Safety Hazards for Workers
In extreme cases, Water Hammer can cause pipe explosions, posing risks to personnel working near the affected areas.

How to Prevent Water Hammer in Industrial Piping Systems
1.) Use Slow-Closing Valves
Select valves that can control the opening and closing speed, such as Globe Valves or Control Valves, to minimize pressure surges.

2.) Install Water Hammer Arrestors and Surge Protection Devices
Several devices can help mitigate hydraulic shock in a piping system, including:

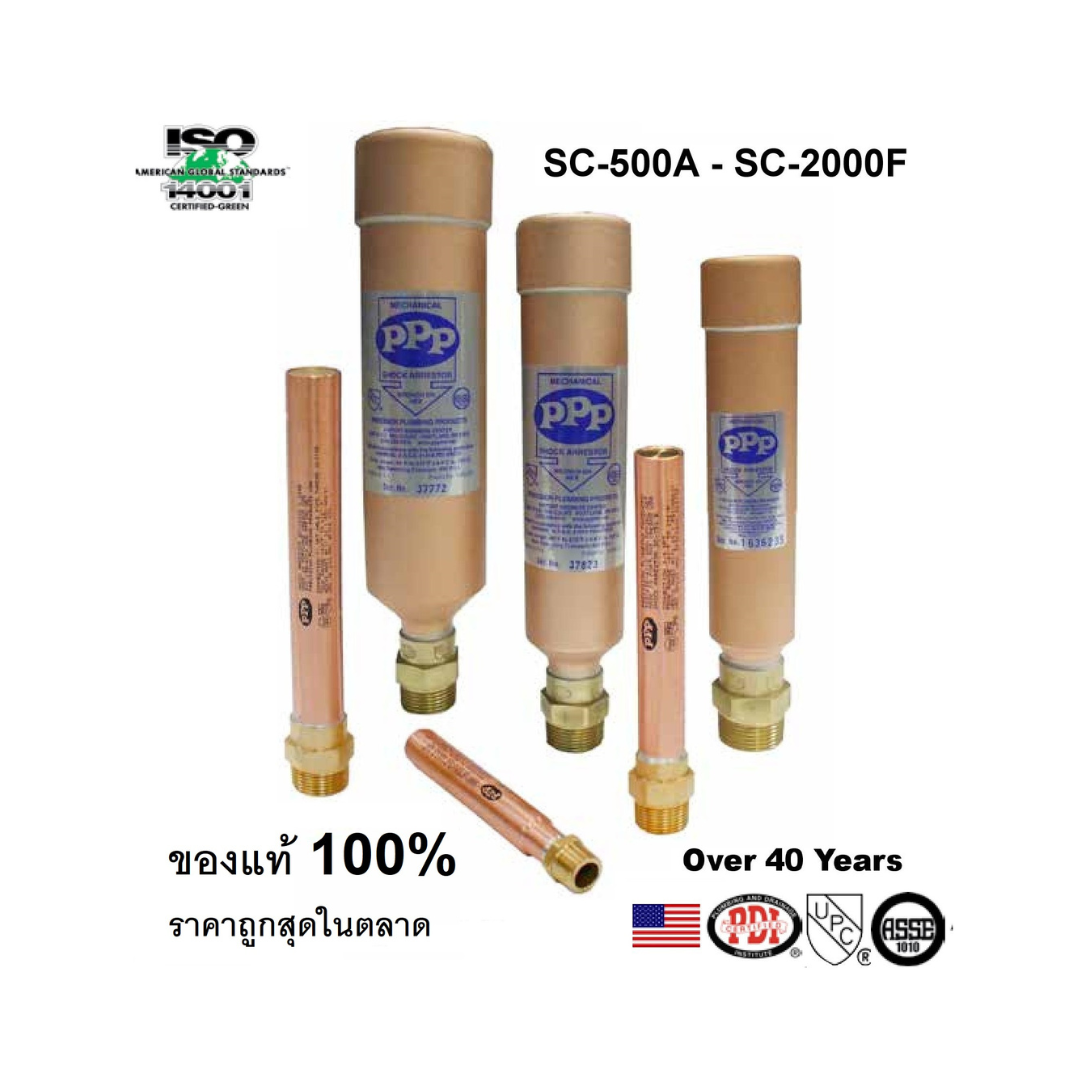

• Water Hammer Arrestors – Absorb pressure surges to prevent shockwaves.
• Surge Tanks – Store excess fluid to stabilize pressure fluctuations.
• Slow-Closing Check Valves – Prevent backflow that could contribute to pressure surges.

3.) Proper Pipeline Design
• Avoid abrupt directional changes in pipe layouts.
• Use appropriately sized pipes to reduce pressure fluctuations.

4.) Control Pump Operation
Implement systems like Variable Frequency Drives (VFDs) to regulate pump speed, preventing sudden flow disruptions.

5.) Regular Maintenance and Inspection
• Continuously monitor system pressure.
• Remove trapped air to prevent pressure buildup.
• Check and maintain valves, pumps, and fittings to ensure optimal performance.

Conclusion
Water Hammer arrestors is a common issue in piping systems that can lead to severe damage if left unaddressed. However, with proper preventive measures, such as installing Water Hammer arrestors, optimizing system design, and performing routine maintenance, these risks can be significantly reduced.

Understanding Water Hammer and implementing the right preventive strategies will ensure your piping system operates efficiently while minimizing the risk of unexpected failures.
